Cansec Supported Access Control Management

Connect ONE® Streamlined access management that scales with your business

Verified Cansec Integration

What's specific to the Cansec MAP integration

Network-ready MAP controllers that talk to the cloud on their own, so Cansec runs standalone for access control and pairs with an intrusion panel only when you want it to

100,000Users, with virtually unlimited doors
1 · 2 · 4 · 8Doors per MAP Mini, MAP1, MAP2
5-yearWarranty, made in North America since 1987

MAP Controller
Family

MAP Mini (1 door), MAP1 (2 to 4) and MAP2 (2 to 8): compact, field-provisionable controllers with status LEDs and Phoenix connectors for quick troubleshooting.

Cloud-Direct
Controllers

Each MAP controller reaches Connect ONE over the network itself: no port forwarding, no inbound configuration, minimal programming, events as they happen.

Wallet & BLE
Credentials

Farpointe/Wavelynx readers for Apple and Google Wallet NFC credentials, Farpointe Conekt readers for BLE mobile credentials, plus Aperio wireless locks.

Intrusion
Sync

Optionally tie readers to an intrusion panel so doors auto-lock when the system arms, certain readers placed into secure/lockout mode, and add elevator control where it is needed.

Compatible Controllers & Equipment

Cansec MAP Mini, MAP1 or MAP2, on their own or behind an Access Expander

  • Controllers: Cansec MAP Mini (1 door), MAP1 (2 to 4 doors) and MAP2 (2 to 8 doors)
  • Connection: network-ready controllers with cloud communication, no port forwarding or inbound network configuration, minimal programming
  • Capacity: scales to virtually unlimited doors and 100,000 users
  • Scheduling: 4 access schedules per door, extended access times for accessibility, code expiration for temporary and visitor access
  • Readers & credentials: Farpointe/Wavelynx (Apple and Google Wallet NFC), Farpointe Conekt (BLE mobile), Aperio wireless locks, elevator control
  • Control: real-time events, instant commands, and optional auto-lock of readers when a paired intrusion panel arms
  • Equipment required: a MAP Mini, MAP1 or MAP2 controller; MAP controllers can also run alongside a DMP, Radionix, Elk or Vista panel with the Connect ONE Access Expander
Contact us to inquire about becoming a dealer.

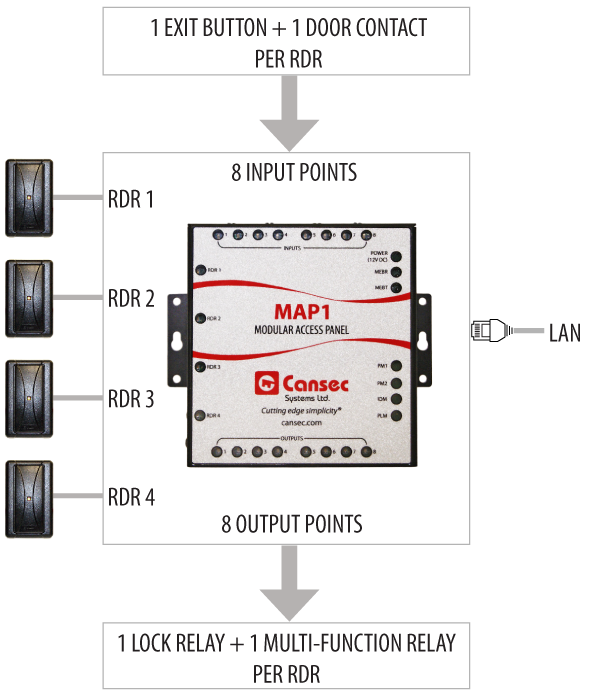

Cansec MAP1 controller configuration in Connect ONE Click to enlarge

Cansec MAP1 controller configured in Connect ONE

Everything else Connect ONE does with your Cansec system

These capabilities work the same way on every supported system, so they are described once, in one place.
